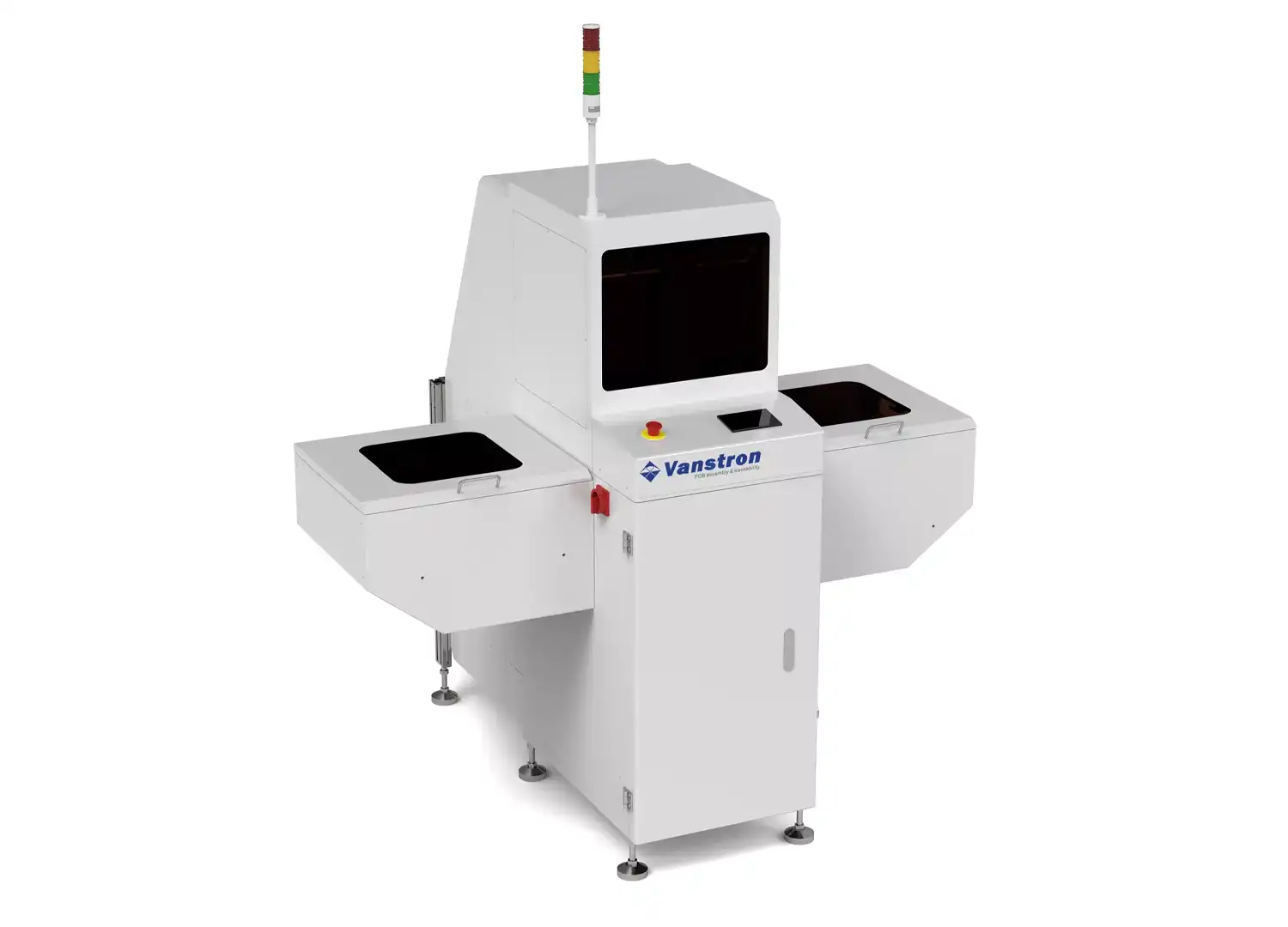

The Multi-Magazine Line Loader & Unloader is designed for loading & unloading of PCBs for SMT lines.
The main operation mode should be like Loader / Unloader at the same side. Like screen printer or AOI with one Loader / Unloader from the left side. It should give the PCB to the screen printer or AOI and then take it back to the magazine to the same position on the magazine and only then move to the next position.
The Multi-Magazine Line Loader & Unloader is designed for loading & unloading of PCBs for SMT lines.
The main operation mode should be like Loader / Unloader at the same side. Like screen printer or AOI with one Loader / Unloader from the left side. It should give the PCB to the screen printer or AOI and then take it back to the magazine to the same position on the magazine and only then move to the next position.
Option 1 | RS-485 communications options ( automatic width adjustment – follow-me )
Option 2 | Motorised width adjustment
Option 3 | Center master software options with Ethernet communication (automatic width adjustment )
Option 4 | IPC Hermes communication ( automatic width adjustment )
Option 5 | Ethernet TCP/IP communicate ( automatic width adjustment )
| Loader & Unloader Combination Specifications | |
|---|---|
| Transfer heights | 900mm+/-50mm |
| Transfer direction | Left to right |
| Lifting platform Max. weight loading | Above 100kg |
| Magazine change over time | 30s ( optional: 15s) |
| Operation side | Front of machine |
| Fixed rail | Front of machine |
| Interface | SMEMA |
| Conveyor belts | ESD flat belt |
| PCB edge support | 3.8mm |
| Allowable components clearance | Top 50 mm+ below 30 mm |
| Magazine capacity | Top 1+down 1+ middle 1 |
| Air supply | 4-6 bar |
| Safety | CE certificates |
| Control | PLC |
| Voltage | 220V/ 110V , single phase, 50-60Hz |
