Vanston | Conveyor

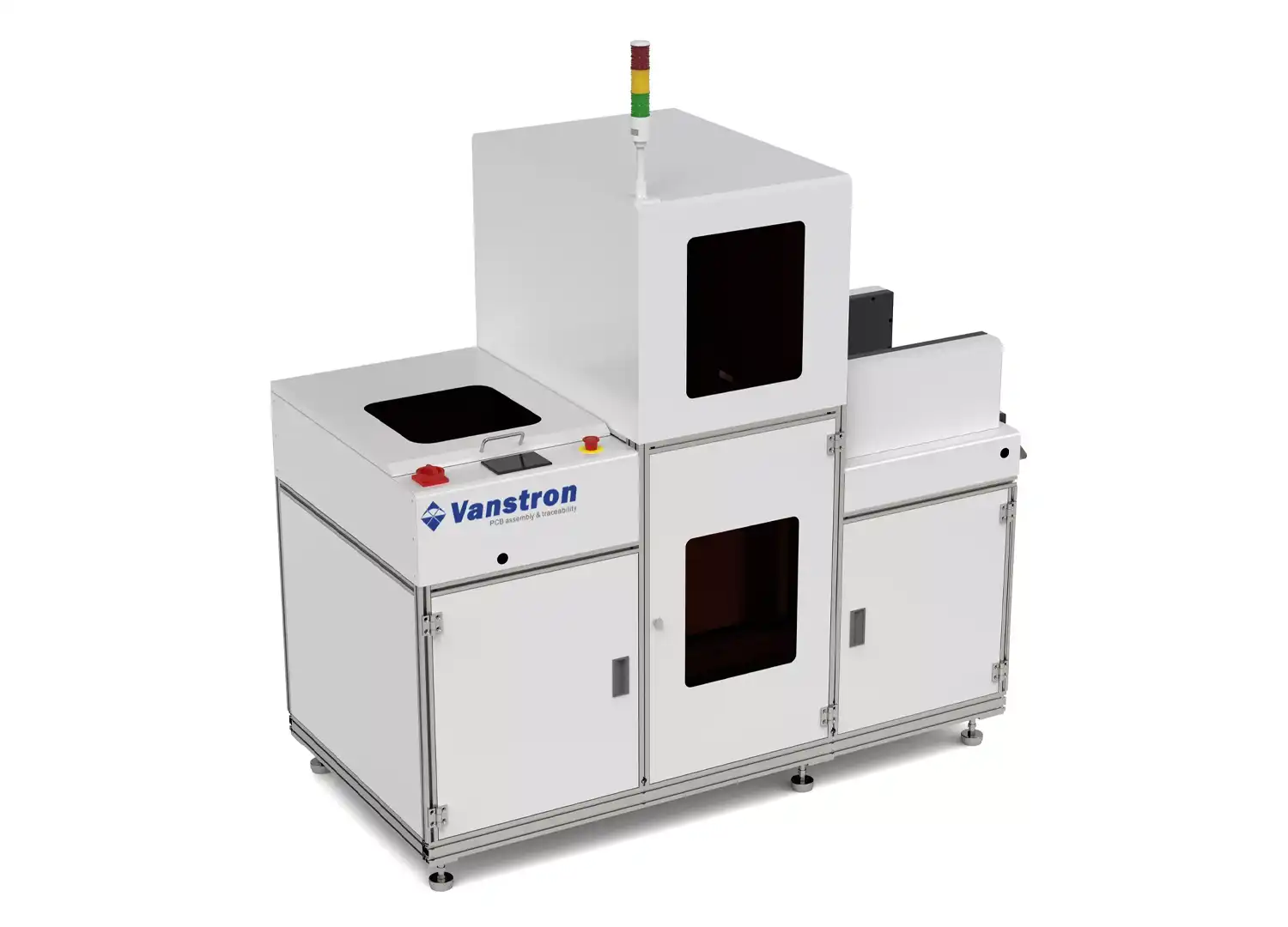

Loader & Destacker Combined
Is this system right for you?
Let our expert team guide you in choosing the perfect system for your needs.
Description
This system is also designed with the capability of handling the bare boards & PCBA into the production line, a independent bare boards destacker is equipped together with the single magazine loader, working in-line.
- Used in SMT line front, sends PCB from magazine to downstream machine.
- The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines. Full magazines are inserted at an ergonomic low level.
- Located at the first stage of SMT line, this unit transfers PCBs stacked in a magazine rack to the downstream machine using a pneumatic pusher one by one.
Streamline Production with Vanstron Conveyor Solutions.
Features
- Mitsubishi PLC program control
- Loader & destacker working mode can be switched exchange.
- Selectable pitch settings
- Tower-light display for machines working status.
- Flexible platform to suit standard magazines
- Exchangeable magazine loading from the front of machine
- Stepper motorized type pusher to enhance working stability
- Pusher position adjustable to Centre for the boards
- Use the friendly touch screen panel automatically driving by motor on the platform.
- Ability to handle the bare boards by destacker.
- SMEMA compatible
Options
Option 1 | RS-485 communications options ( automatic width adjustment – follow-me )
Option 2 | Motorised width adjustment
Option 3 | Center master software options with Ethernet communication (automatic width adjustment )
Option 4 | IPC Hermes communication ( automatic width adjustment )
Option 5 | Ethernet TCP/IP communicate ( automatic width adjustment )
| Loader & Destacker Combined Specification | |
|---|---|
| Transfer heights | 900mm+/-50mm |
| Transfer direction | Left to right |
| Lifting platform Max. weight loading | Above 100kg |
| Magazine change over time | 30s (Optional: 15s) |
| Operation side | Front of machine |
| Fixed rail | Front of machine |
| Interface | SMEMA |
| Conveyor belts | ESD flat belt |
| PCB edge support | 3mm |
| Allowable components clearance | Top 50 mm+ below 25mm |
| Bare boards handling capability | Total 240mm heights (0.6mm thickness) |
| Bare boards loading | PCB thickness: 0.6-2.5mm |
| Magazine capacity | Single magazine |
| Air supply | 4-6 bar |
| Safety | CE certificates |
| Control | PLC |
| Voltage | 220V/ 110V , single phase, 50-60Hz |
