ECD V-MOLE 2 Thermal Proflier

ECD | Thermal Profiler

V-M.O.L.E. 2

Touch control twelve measurement thermal profiler.

The V-M.O.L.E. 2 thermal profiler is the go-to solution for simple verification of PCB profile performance. Four channels capture all measurements necessary for verifying the proper oven settings. Powered by award-winning M.A.P. software, data capture, download, and analysis are streamlined and intuitive. With separate on/off and record buttons to prevent lost profiles, an expansive storage capacity of up to 200 thermal profiles, and one-button profile confirmation, the V-M.O.L.E. 2 makes setting up, validating, and maintaining proper thermal profiles easy and efficient.

Is this system right for you?

Let our expert team guide you in choosing the perfect system for your needs.

Protect your time profiler

  • Indicators identify if critical systems are “GO” before profiling
  • Internal battery voltage is low
  • Internal temp is at or above a threshold
  • Memory is full
  • All channels are OFF

Flexibility

  • 4 thermocouple inputs
  • Uses standard, mini thermocouple connectors
  • Multiple thermocouple types supported

Profile verification

  • 4 Channels, all you need to run a profile verification

Ease of use

  • USB-C communications and charging
  • Two-button control (on/off and record)



Built to last

  •  High-capacity, off-the-shelf LiPo battery
  • Automatic shutdown if internal temperature is too high
  • ESD-protected inputs

Speed

  • Sampling at up to 100 samples per second
  • Higher sampling rates with higher accuracy

An evolution in thermal profiling.

Thermocouple sensors (4)

  •  Standard mini-thermocouples: Type K*, T, J, E, N, R, S & B
  • %RH: ECD VaporWATCH RH Sensor

*Type K: Special Limits of error ±1.1 or ±0.004*T per ASTM E230/E230M-12, IEC 60584:2013 and ISA–MC96.1–1982.

Data Acquisition

  •  Sampling Interval: 100 samples/second to 10 minutes/sample
  • Data points: 16 million (2.6 million at 6 channels) or 200 data runs (whichever comes first)
  • Accuracy: +/- 1°C (1.8°F)
  • Resolution: 0.0056°C (0.01°F)*
  • Noise Rejection: 50-60 hrz*
  • Measurement range: -200°C to 1,200°C (-328°F to 2,192°F)

*>= 0.05 seconds/sample

Power

  • Battery: LiPo (Lithium Polymer ion) – Rechargeable, 1100mAh
  • Charge Protection: optimised for lithium polymer
  • Charge time: Full – < 4 hours
  • Charge runtime: Full – 6 to 8 Hours
  • Battery Life: 300-400 charging cycles or 3 years (Minimum)
  • Charger input current: 60 ma via USB Interface

Physical

  •  Profiler: 165.1mm (6.5”) x 89mm (3.5”) x 9.41mm (0.37”)
  • Barrier: 253.9mm (10.0”) x 104mm (4.1”) x 26.9mm (1.06”)
  • Yellow Jacket: 264.6mm (10.4”) x 115mm (4.53”) x 32.5 (1.28”)

Dimensions (L x W x H):

Weight

  • Profiler: 0.182 kg (6.4 oz)
  • Barrier: 0.861 kg (30.4 oz)
  • Yellow Jacket: 0.07 kg (2.4 oz)

Operational range (Profiler): -40°C to +80°C (-40°F to 176°F)

Humidity: 0-85% RH (Non Condensing)

Communications

  • Interface: USB 2.0 Compliant (charge; upload; download)
  • Cable: USB Type A to USB-C, 1m (3’)

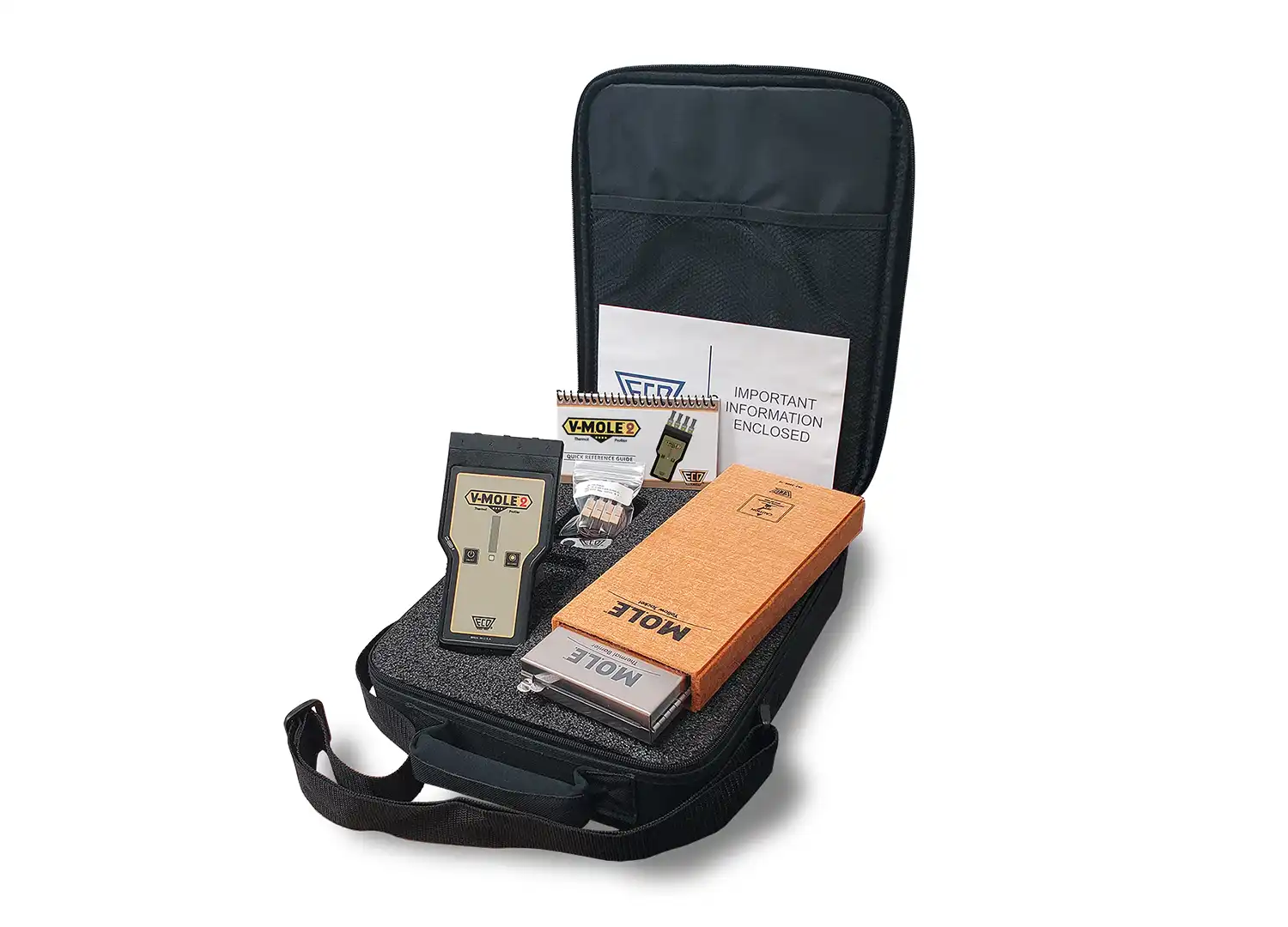

ECD V-MOLE 2 Thermal Proflier Kit

Standard thermal profiler kit

  •  V-M.O.L.E. 2 thermal profiler
  • 260L stainless steel Thermal Barrier
  • 260L Yellow Jacket Thermal Barrier Cover
  • Set of four glass 36-gauge thermocouples
  • M.O.L.E. MAP Software
  • PC USB C Cable (Set-up & Download)
  • Universal Power Pack Charger
  • Quick Reference Guide
  • Carrying Case
  • Calibration Certificate from ECD’s ISO 17025 accredited lab

Deliver accurate and reliable thermal data.

ecd thermal profiling technology logo

ECD Thermal Profilers are engineered to deliver accurate and reliable thermal data, essential for optimising manufacturing processes. With a focus on precision and efficiency, ECD’s profilers help manufacturers achieve the ideal thermal profiles for their products, ensuring consistent quality and performance.

Their cutting-edge technology allows for detailed analysis of thermal cycles, enabling manufacturers to identify potential issues before they affect production. ECD’s thermal profiling solutions are utilised in various applications, including PCB assembly, where maintaining precise temperature control is crucial to achieving optimal soldering results.
