ECD MOLE M.O.L.E-EV6 thermal profiling technology

ECD | Thermal Profiler

M.O.L.E. EV6

An evolution in thermal profiling.

With a revolutionary new design, M.O.L.E. EV6 brings deep data collection and touch screen convenience to thermal profiling. The travelling thermal profiler allows configuration, measurement and data analysis right on the device – providing immediate actionable information, saving time and reducing the requirement for intensive operator training. Using a familiar smartphone-like capacitive touch screen, users now have shop floor data literally at their fingertips. The six-channel M.O.L.E. EV6 integrates with all ECD RIDER machine quality management technologies for a truly scalable approach, made easier with visual, touch screen control.

Is this system right for you?

Let our expert team guide you in choosing the perfect system for your needs.

The ECD M.O.L.E. EV6 is an advanced thermal profiler designed to provide precise temperature measurement and monitoring for electronics manufacturing processes. Engineered for efficiency and accuracy, the M.O.L.E. EV6 is essential for optimising soldering applications, including reflow and wave soldering.

Featuring an intuitive interface, this portable profiler allows for easy setup and operation, making it an ideal tool for both experienced technicians and newcomers alike. The M.O.L.E. EV6 offers real-time data logging and detailed thermal analysis, enabling manufacturers to capture critical temperature profiles throughout the production cycle.

With its robust design, the M.O.L.E. EV6 is built to withstand the demands of a manufacturing environment while delivering reliable performance. The profiler ensures that each thermal cycle meets the required specifications, ultimately improving solder joint quality and reducing defects.

In addition, the M.O.L.E. EV6 is compatible with various probes and accessories, providing flexibility to meet specific application needs. By utilising the ECD M.O.L.E. EV6, manufacturers can enhance process control, improve production efficiency, and ensure consistent quality in their electronics assembly operations.

An evolution in thermal profiling.

Simple and immediate status confirmation

  • On-screen instrument status display
  • Live temperature readings
  • Thermal profile
  • KPI table

Preventative maintenance

  • Built-in calibration reminders
  • Battery life/charge indicators
  • Memory status indicator

Flexibility

  • Supports multiple thermocouple types

Speed

  • Sampling at up to 100 samples per second

Ease of use

  • USB-C communications and charging
  • Two-button control (on/off and record)

Operational robustness

  • High-capacity, off-the-shelf Lipo battery
  • Auto shutdown protection for over temp conditions
  • Programmable to conserve battery life
  • Watchdog timer-monitored firmware control
  • ESD-protected inputs
  • Non-volatile profile memory



An evolution in thermal profiling.

Display

  • PS TFT Display
  • 240 x 400 Dot Matrix
  • High Brightness LED Backlight
  • Any Angle Viewing Direction

 Thermocouple Sensors (Up to 6)

  • ECD Micro-Thermocouples: Type K*, T, J, E, N, R, S & B
  • %RH: ECD VaporWATCH RH Sensor

*Type K: Special Limits of error ±1.1 or ±0.004*T per ASTM E230/E230M-12, IEC 60584:2013 and ISA–MC96.1–1982.

Data Acquisition

  • Sampling Interval: 100 samples/second to 10 minutes/sample
  • Data points: 16 million (2.6 million at 6 channels) or 200 data runs (whichever comes first)
  • Accuracy: +/- 1°C (1.8°F)
  • Resolution: 0.0056°C (0.01°F)*
  • Noise Rejection: 50-60 hrz*
  • Measurement range: -200°C to 1,200°C (-328°F to 2,192°F)

*>= 0.05 seconds/sample

Physical

  • Profiler: 152.4mm (6”) x 89mm (3.5”) x 9.41mm (0.37”)
  • Barrier: 253.9mm (10.0”) x 104mm (4.1”) x 26.9mm (1.06”)
  • Yellow Jacket: 264.6mm (10.4”) x 115mm (4.53”) x 32.5 (1.28”)

Dimensions (L x W x H):

Weight

  • Profiler: 0.204 kg (7.2 oz)
  • Barrier: 0.861 kg (30.4 oz)
  • Yellow Jacket: 0.07 kg (2.4 oz)

Operational range (Profiler): -40°C to +80°C (-40°F to 176°F)

Humidity: 0-85% RH (Non Condensing)

Communications

  • Interface: USB 2.0 Compliant (charge; upload; download)
  • Cable: USB Type A to USB-C, 1m (3’)

Power

  • Battery: Lipo (Lithium Polymer ion) – Rechargeable, 1100mAh
  • Charge Protection: optimised for lithium polymer
  • Charge time: Full – < 4 hours
  • Charge runtime: Full – 6 to 8 Hours
  • Battery Life: 300-400 charging cycles or 3 years (Minimum)
  • Charger input current: 60 ma via USB Interface
ECD MOLE EV6 thermal profiling technology

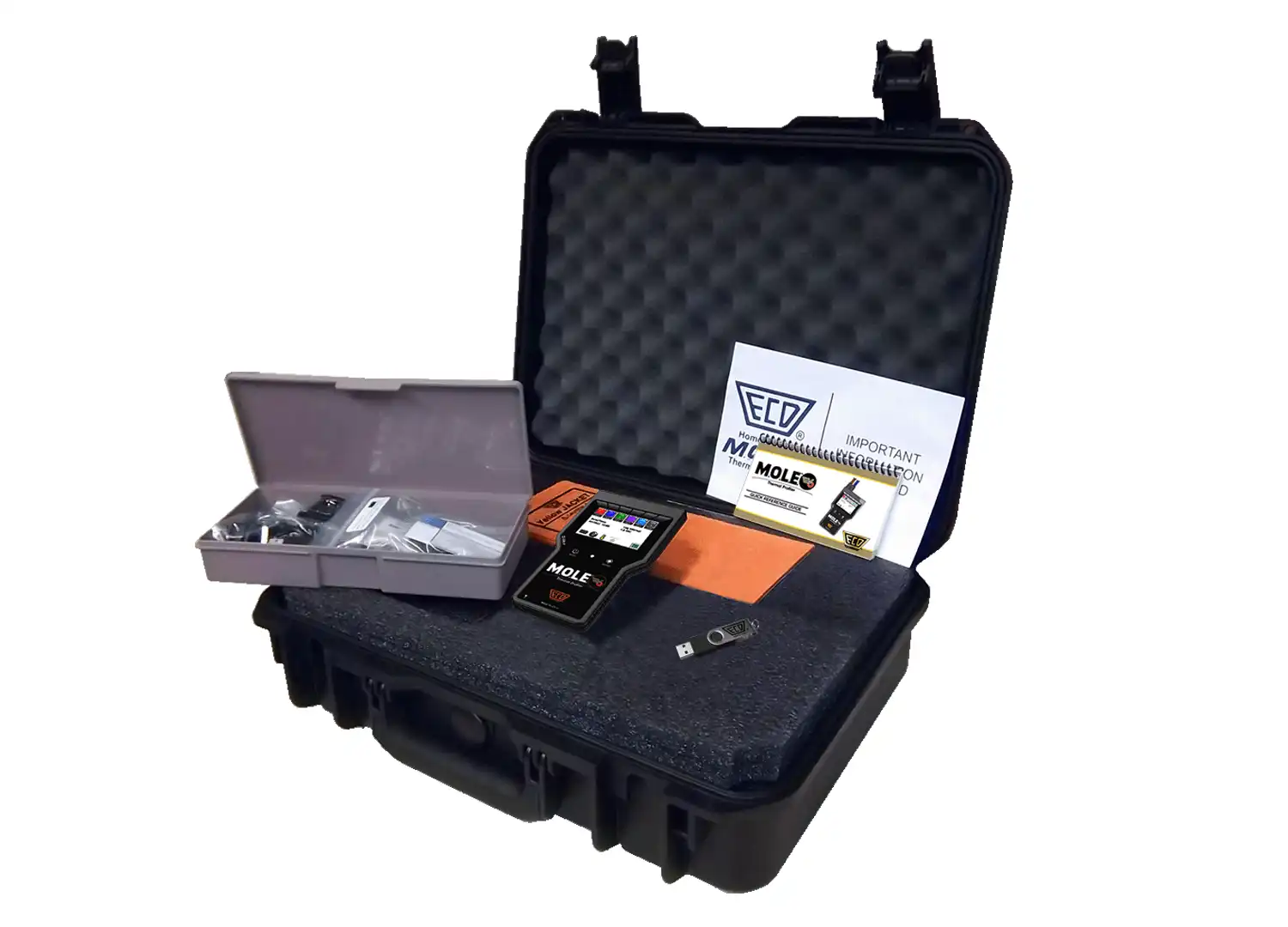

Standard thermal profiler kit

  • M.O.L.E. EV6 Profiler (w/integrated battery)
  • 260L stainless steel Thermal Barrier
  • 260L Yellow Jacket Thermal Barrier Cover
  • Glass set of 6 Colour-Indexed 36-gauge Thermocouples
  • M.O.L.E. MAP Software
  • PC USB C Cable (Set-up & Download)
  • Universal Power Pack Charger
  • Quick Reference Guide
  • Carrying Case
  • Calibration Certificate from ECD’s ISO 17025 accredited lab

Deliver accurate and reliable thermal data.

ecd thermal profiling technology logo

ECD Thermal Profilers are engineered to deliver accurate and reliable thermal data, essential for optimising manufacturing processes. With a focus on precision and efficiency, ECD’s profilers help manufacturers achieve the ideal thermal profiles for their products, ensuring consistent quality and performance.

Their cutting-edge technology allows for detailed analysis of thermal cycles, enabling manufacturers to identify potential issues before they affect production. ECD’s thermal profiling solutions are utilised in various applications, including PCB assembly, where maintaining precise temperature control is crucial to achieving optimal soldering results.
