3D SPI Systems

OMRON’s 3D Solder Paste Inspection (SPI) Systems ensure precise solder paste deposition, driving higher quality in PCB assembly by identifying inconsistencies and defects before they become costly issues.

Our team of specialists offer knowledge and expertise in your imaging process.

OMRON’s 3D SPI systems deliver advanced solder paste inspection to guarantee the accuracy and consistency of paste deposits, a critical step in achieving defect-free PCB assemblies.

Utilising high-resolution 3D imaging and advanced algorithms, these systems accurately measure volume, height, area, and shape of solder deposits, ensuring the optimal performance of each board.

Designed to integrate seamlessly into modern production lines, OMRON’s 3D SPI systems provide real-time monitoring and detailed feedback, allowing manufacturers to quickly address deviations and improve overall process control. By identifying issues such as insufficient paste, bridging, or misaligned deposits early in the process, the risk of downstream defects is greatly reduced.

Whether you’re working in a high-mix, low-volume environment or a large-scale operation, OMRON’s 3D SPI solutions offer the flexibility, speed, and precision needed to maintain strict quality standards. Supported by Etek Europe’s dedicated team, our expert service and continuous support help ensure your inspection processes run smoothly and efficiently, enhancing production outcomes while minimising costly errors.

Omron Inspection Systems
  • Omron VP-01G £D Solder Paste Inspection System
    VP-01G
    light blue arrow
    VP-01G

    3D SPI

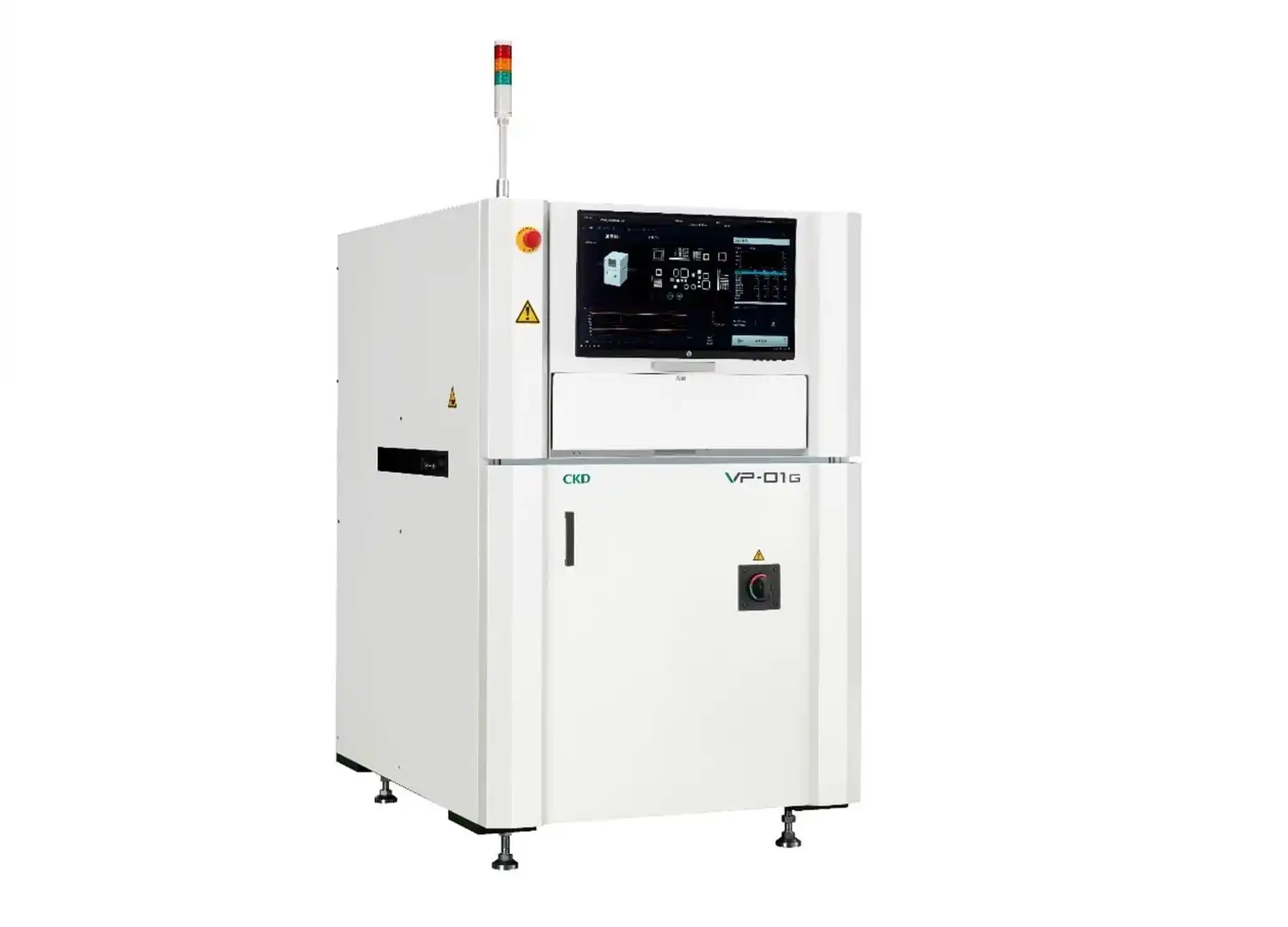

    The OMRON VP-01G is a fast, accurate 3D SPI system for SMT lines. Ensure perfect solder paste quality with advanced optical and AI-driven inspection.

    Explore System ⇾

  • Omron VP9000 3D SPI solder paste inspection system
    VP9000
    light blue arrow
    VP9000

    3D SPI

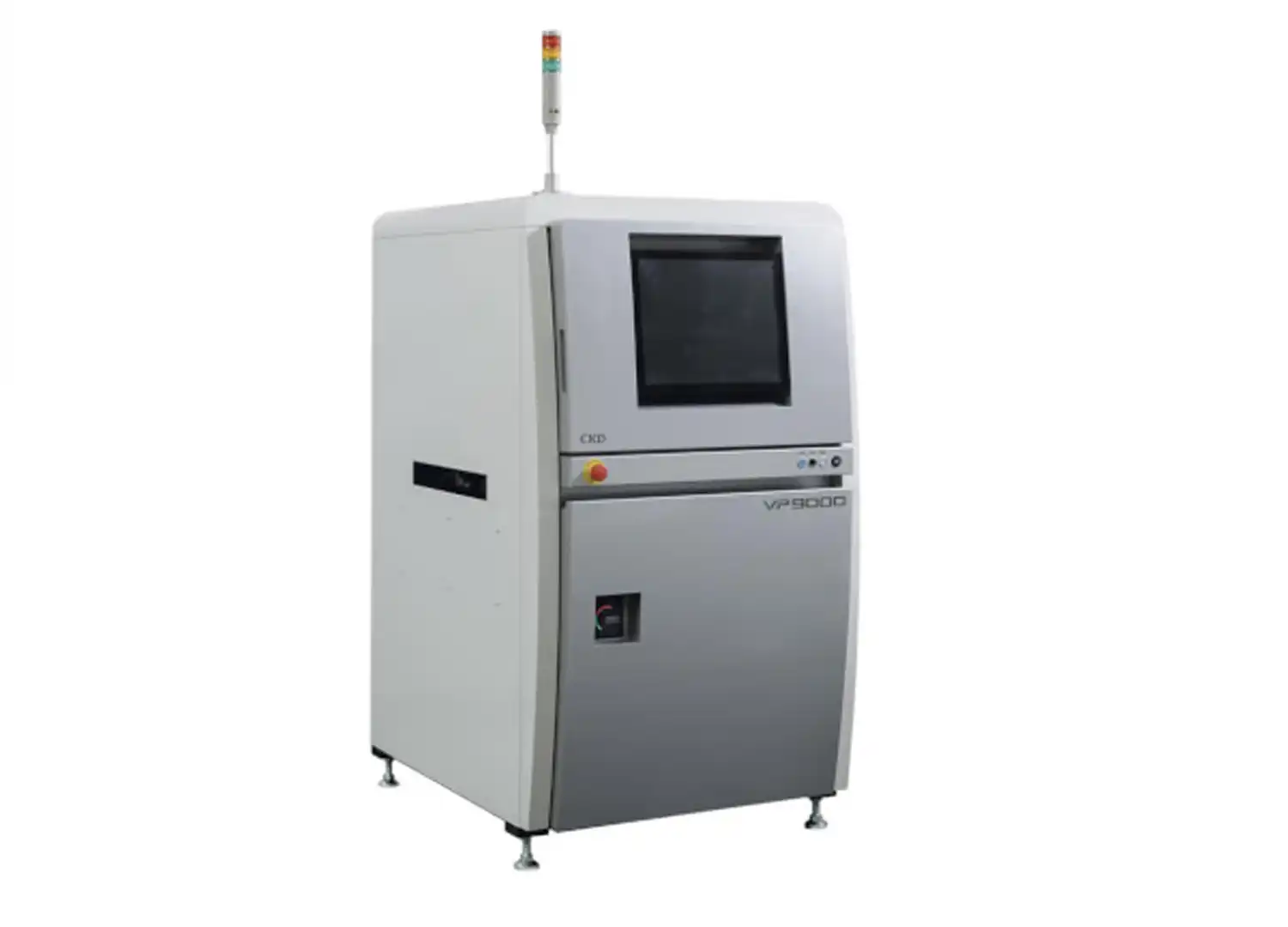

    The VP9000 uses highly accurate and repeatable 3D imaging to perform complete PCB solder paste analysis.

    Explore System ⇾
