Everest Ultrasonic AutoClean ultrasonic automotive washing systems
AutoClean Ultrasonic cleaning machine
AutoClean Ultrasonic cleaning system
Everest AutoClean Ultrasonic cleaning machine
Everest AutoClean Ultrasonic cleaning system
Everest AutoClean Ultrasonic cleaning
Everest AutoClean Ultrasonic
Everest AutoClean
Everest Ultrasonic AutoClean

Everest | Ultrasonic Cleaning

AutoClean

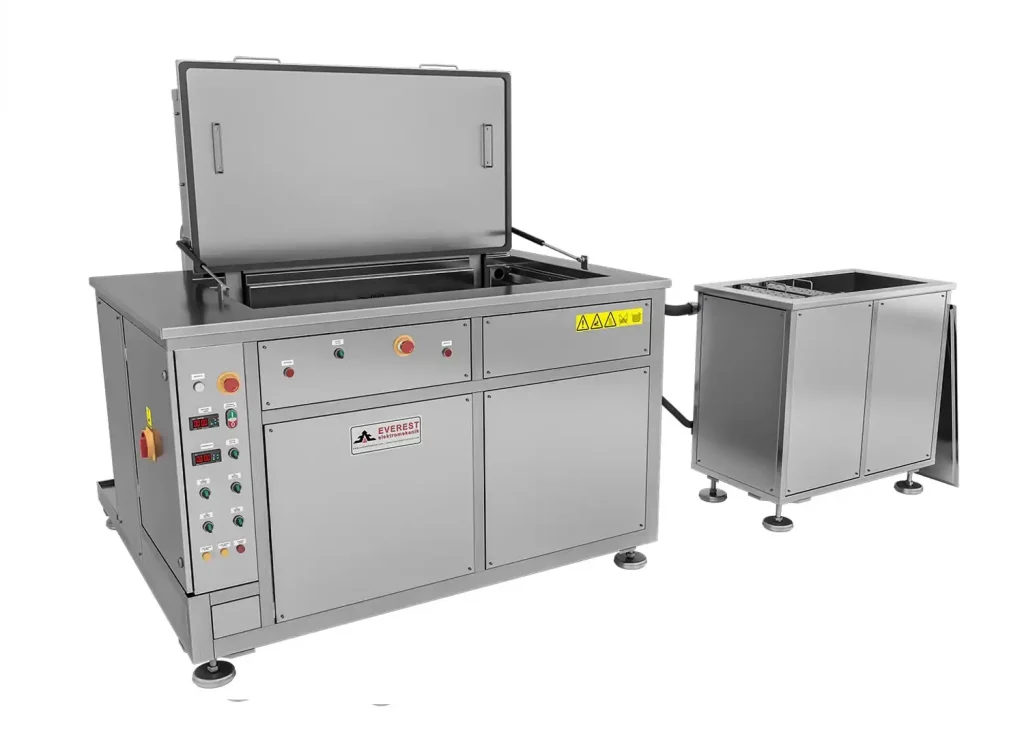

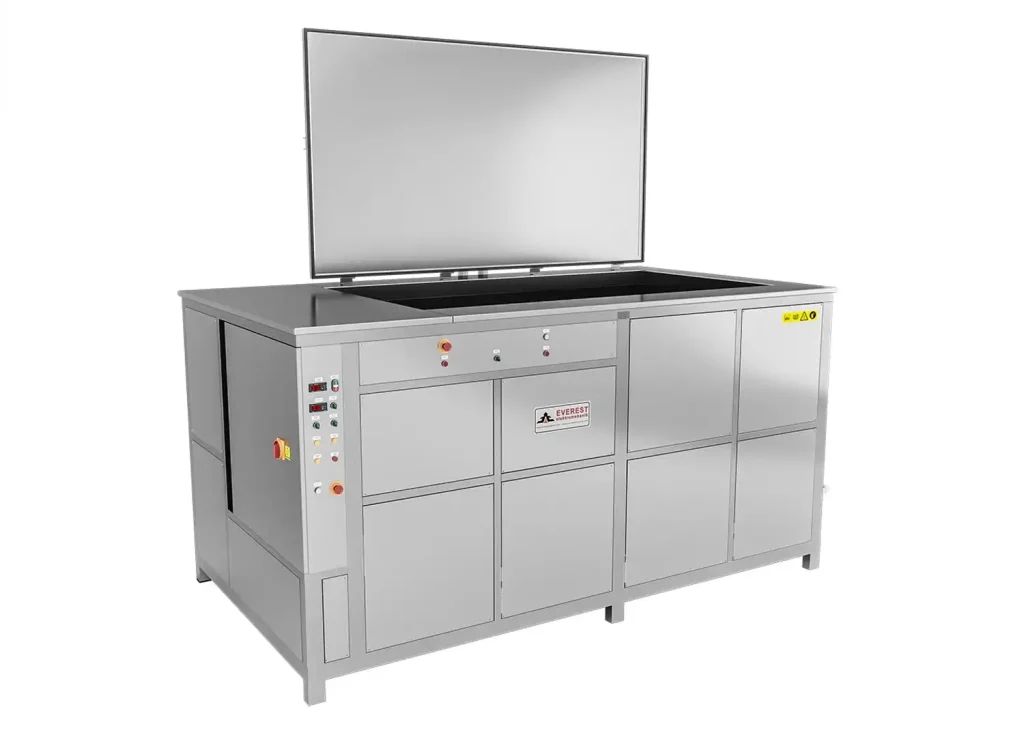

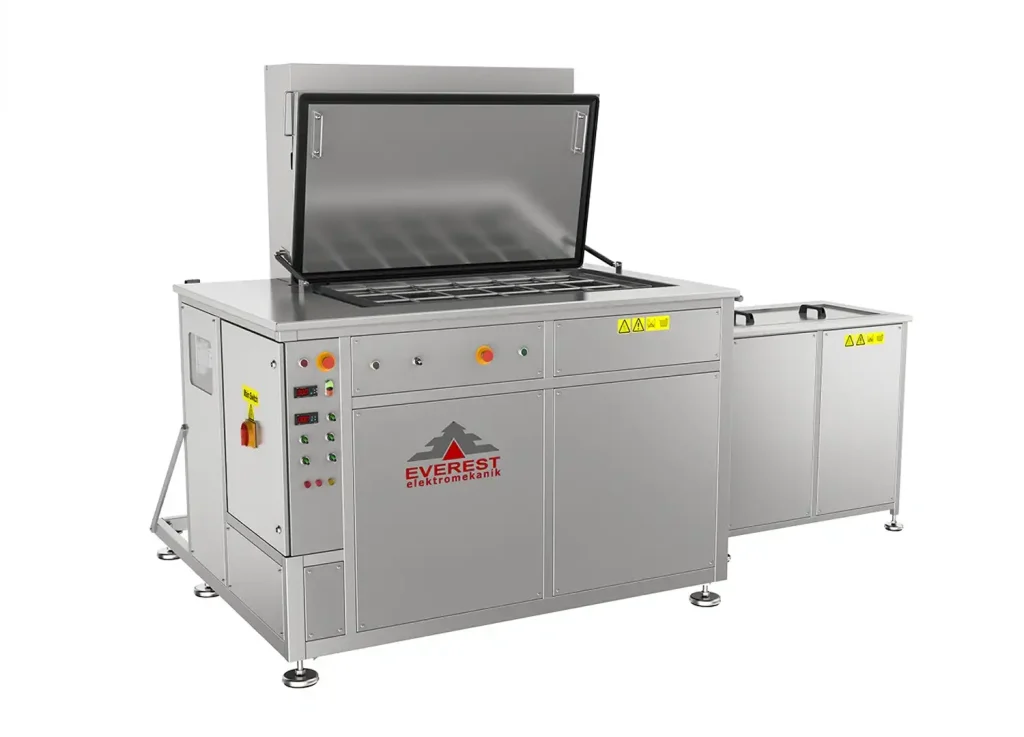

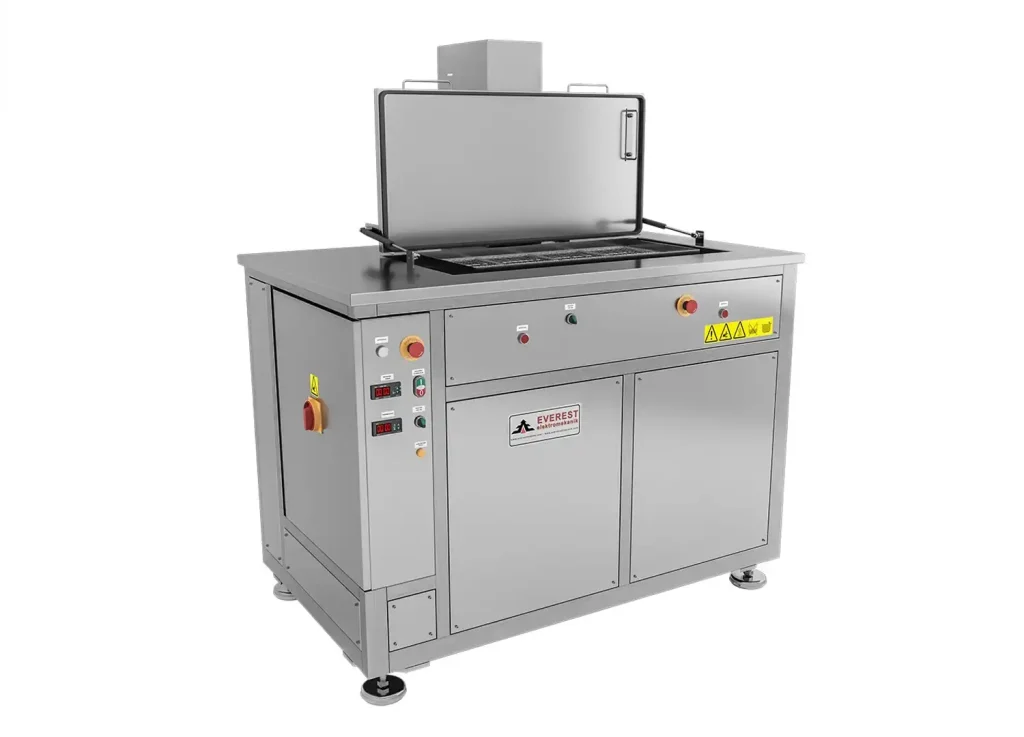

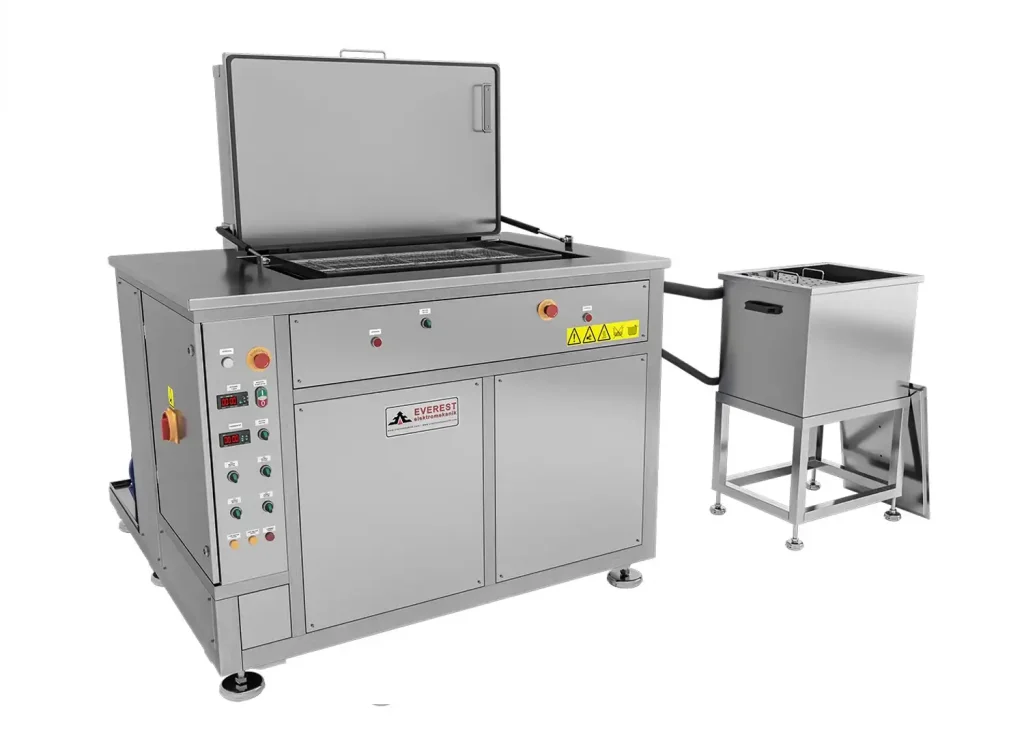

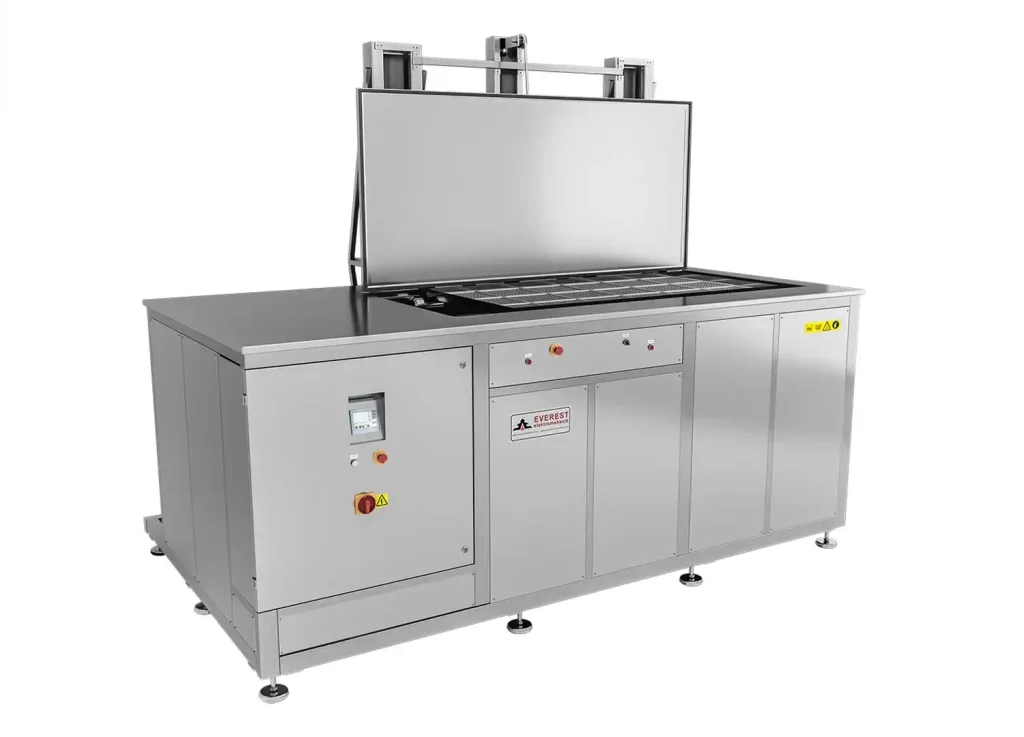

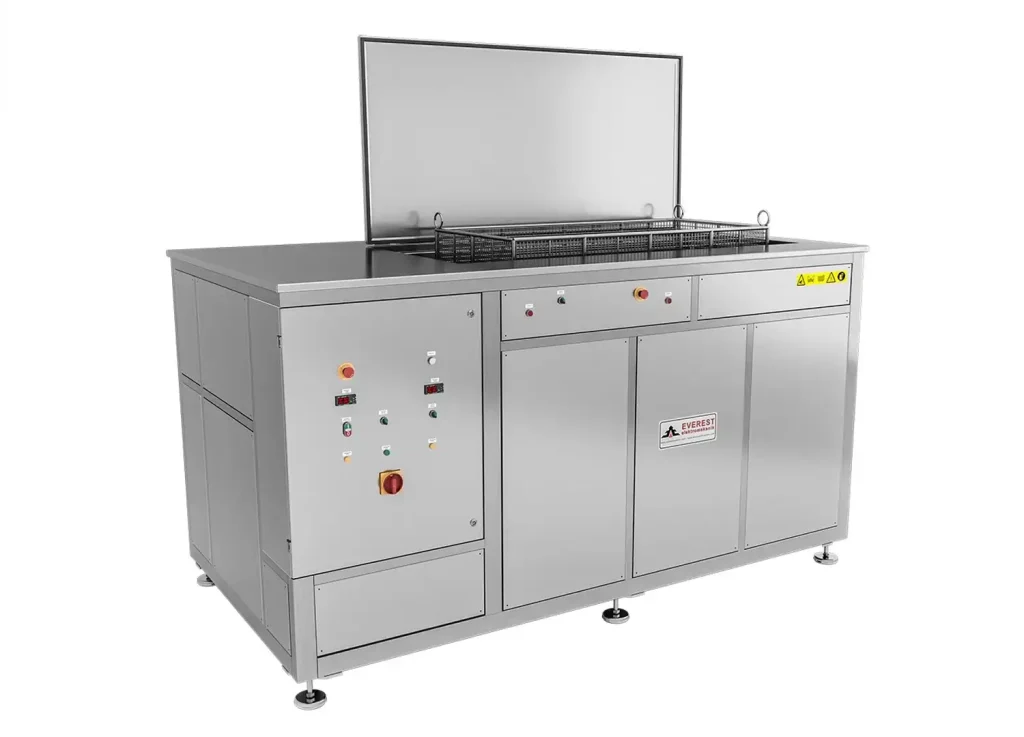

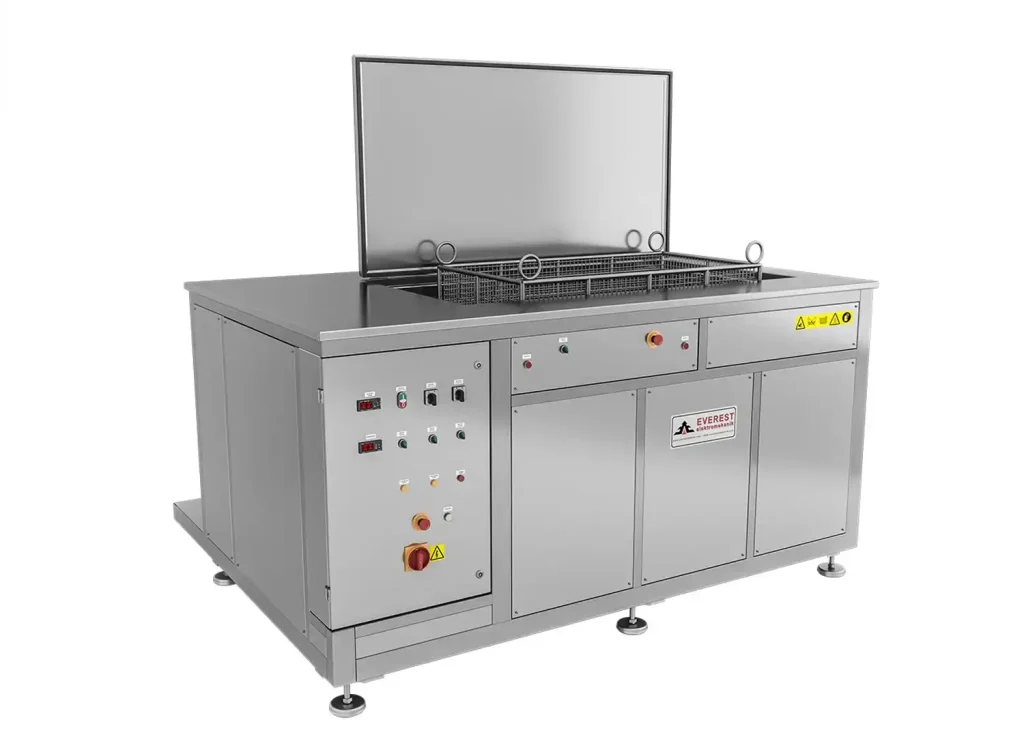

An ultrasonic washing system designed for the cleaning of sensitive parts.

AutoClean ultrasonic automotive washing systems are designed for sensitive cleaning of engines and engine components for the automotive, marine, railway, and aviation industries. Before surface treatment or final assembly, in production, maintenance, repair lines; these systems are widely used in precision cleaning of all kinds of parts such as engines, engine blocks, cylinder heads, injectors, brake discs, gearboxes and radiators. AutoClean washing systems are tens of times more effective than conventional hand washing. Due to ultrasonic cleaning in AutoClean washing systems, the smallest holes and sections are effectively reached, and an effective cleaning is done. In the AutoClean washing system, where ultrasonic washing takes place in a single tub, it is offered as 28kHz or 40kHz ultrasonic standard on the sides or on the bottom, depending on the volume and tank geometry.

Please complete all fields below to download the datasheet.

    Full Name*

    Email Address*

    Company*

    Country*

    Please note: Brochures are for guidance only and are subject to change in accordance with the manufacturers. We reserve the right to make these changes without prior notice or liability.

    Is this system right for you?

    Let our expert team guide you in choosing the perfect system for your needs.

    AutoClean ultrasonic automotive washing systems are designed for sensitive cleaning of engines and engine components for the automotive, marine, railway, and aviation industries. Before surface treatment or final assembly, in production, maintenance, repair lines; these systems are widely used in precision cleaning of all kinds of parts such as engines, engine blocks, cylinder heads, injectors, brake discs, gearboxes and radiators. AutoClean washing systems are tens of times more effective than conventional hand washing. Due to ultrasonic cleaning in AutoClean washing systems, the smallest holes and sections are effectively reached, and an effective cleaning is done. In the AutoClean washing system, where ultrasonic washing takes place in a single tub, it is offered as 28kHz or 40kHz ultrasonic standard on the sides or on the bottom, depending on the volume and tank geometry.

    Washing system: Large ultrasonic washing systems
    Working principle: Parts placed on the standard floor mounted platform by hand or with the assistance help of an overhead crane are cleaned by ultrasonic washing.
    Tank system: Single tank with heating
    Construction: Entirely from 304 stainless steel
    Ultrasonic: 28 or 40kHz

    Elevate your standards with Everest Ultrasonic cleaning systems.

    Features

    •  Space saving
    • Cost saving
    • Environmentally friendly
    • Energy efficient
    • Suitable for heavy items
    • Manual installation
    • Designed for delicate cleaning.
    • Low water liquid level protection which stops the machine automatically
    • Cleaning time and temperature are adjustable
    • Can be integrated into the serial production line (optional)
    AutoClean options
    ModelMaximum Loading Height mmTank Size L/W/H)mmExternal Size L/W/H)mmTank Volume LtLoading Weight Kg
    AutoClean 200300890*430*4901450*924*110020075
    AutoClean 300 400890*550*6301530*1190*1170300250
    AutoClean 400 4001180*650*6501830*1290*1170500250
    AutoClean 600 4501330*750*7001980*1390*1220680250
    AutoClean 800 6501330*750*9001980*1390*1420960500
    AutoClean 10003501580*800*8902650*1440*1280 1200500
    AutoClean 13009001580*800*12002750*1440*15801580500
    AutoClean 20009001850*950*12003000*1600*15802100900
    AutoClean 3000 10002100*1100*13003250*1750*17003100900
    AutoClean 4500 10002700*1450*13003900*2100*17005000900
    AutoClean 600010003200*1600*13004400*2250*170066001500
    AutoClean 9000 12003700*1700*1500 4800*2400*190093001500

    Features

    Washing steps

    • The entire process takes place in a single tank.

    Addable Features

    • Dual and multi frequency ultrasonics available at request
    • AISI 316L or AISI 316T stainless steel can be used
    • Oil separation
    • Pump filtration
    • Automatic water filling/draining
    • Pump circulation
    • Chemical dosing systems
    • Pneumatic oscillating platform
    • Other system features

    Elevate your standards with Everest Ultrasonic cleaning systems.

    Everest Ultrasonic Cleaning Systems

    The Everest Ultrasonic Cleaning Systems range includes advanced models designed for efficient, deep cleaning of electronic components, precision tools, and industrial parts. Harnessing ultrasonic waves, Everest systems effectively remove contaminants, oils, and residues, reaching areas that traditional cleaning methods cannot access. Ideal for intricate assemblies and complex machinery, these systems ensure that even the smallest crevices are thoroughly cleaned, extending the life and reliability of critical components.

    What sets Everest apart is its dedication to engineering excellence, durable materials, and continuous support. Partnering with Etek Europe, our clients benefit from expert consultation, experienced technicians, and ongoing support. At Etek Europe, we’re more than a supplier—we’re your partner in achieving superior cleanliness, efficiency, and operational longevity.
