The Aqueous Technologies Ionic contamination testers were designed and implemented for the purpose of determining and monitoring the cleanliness of assemblies. Resistivity of Solvent Extract (ROSE) testers are utilised to ensure that cleaning processes remain within tolerance of IPC and MIL specifications. The Zero-Ion G3 ionic contamination tester meets industrial cleanliness specifications including MIL-STD-2000A, MIL-P-28809 and IPC-001 TM-650 2.3.25, and NASA-STD-8739.1B sections 7.2-7.5, through the use of dynamic measurement technology.
|
|
Search Systems
Aqueous Technologies

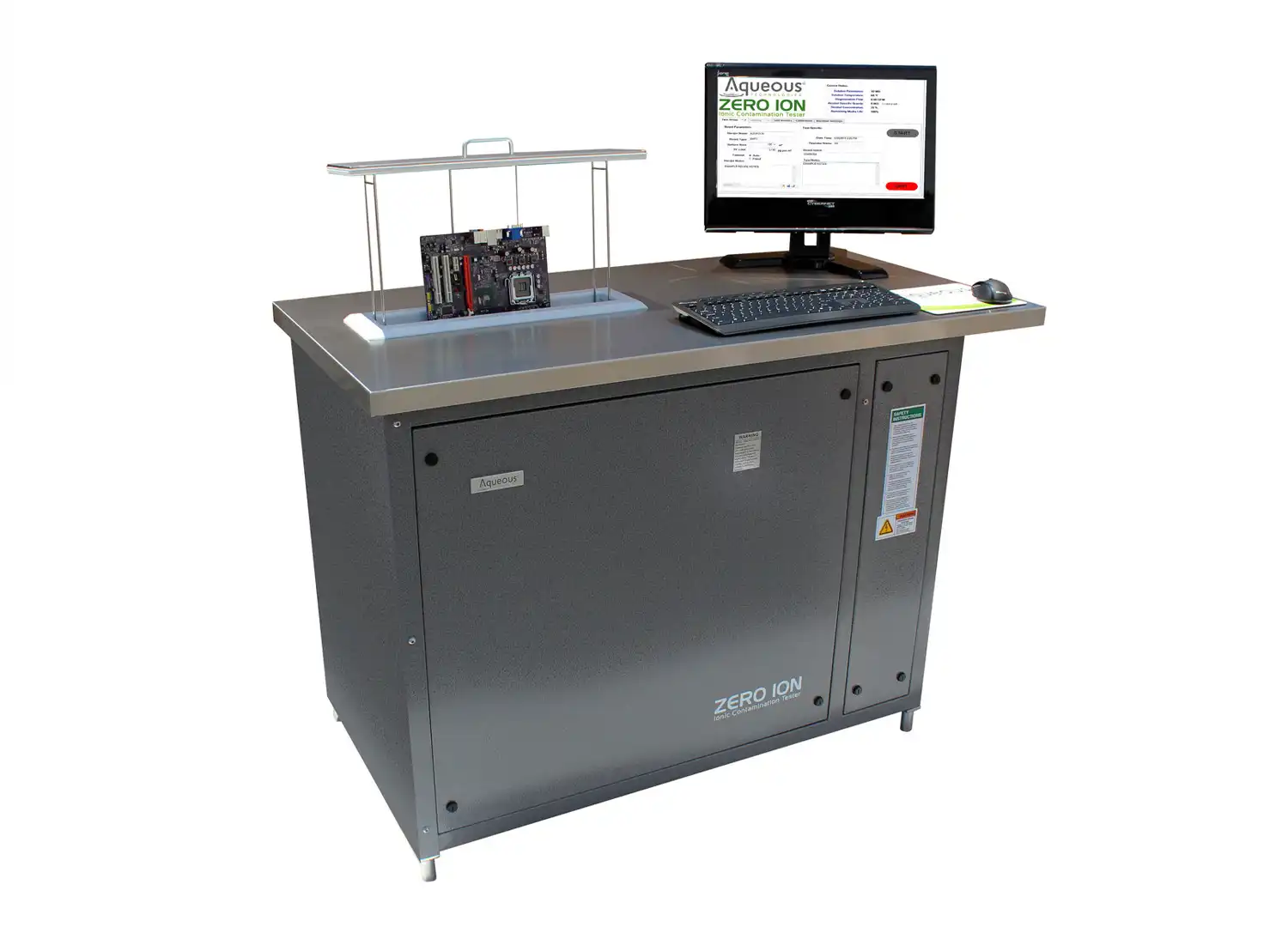

Zero Ion Contamination Tester
Military and IPC approved cleanliness tester resistivity of solvent extract (ROSE) tester
Is this system right for you?
Let our expert team guide you in choosing the perfect system for your needs.
With today’s high board densities, and fine-pitch surface-mount devices, in an era of ISO and other quality standards, the requirements for accurate contamination (cleanliness) testing are high.
Ionic contamination testers were designed and implemented for the purpose of determining and monitoring the cleanliness of assemblies. Resistivity of Solvent Extract (ROSE) testers are utilized to ensure that cleaning processes remain within tolerance of IPC and MIL specifications. The Zero-Ion G3 ionic contamination tester meets industrial cleanliness specifications including MIL-STD-2000A, MIL-P-28809 and IPC-001 TM-650 2.3.25, and NASA-STD-8739.1B sections 7.2-7.5, through the use of dynamic measurement technology.
The Zero-Ion tester was selected as the “benchmark” unit for the 1993 study “An In-Depth Look at Ionic Contamination Testing” conducted by the Electronics Manufacturing Production Facility (EMPF), Navy National Center of Excellence for Electronics Manufacturing.
This system provides quick and precise cleanliness measurements of printed circuit assemblies, bare boards, and other electro-mechanical devices. Its ease of use and dynamic results in all three of the leading ionic tester equivalency formats, make the Zero-Ion tester the choice of electronics manufacturers all over the world.
The unit’s Windows PC based control system provides an operator friendly interface and captures all relevant testing data. The PC based control system automatically calculates NaCl/square equivalence (per military and IPC specifications), operates in automatic and manual modes, and is equipped with virtually limitless test recipe capabilities. The combination of test board submersion and immersion spraying creates an environment whereby all of the soluble contamination is extracted and measured.
Elevate your production with Aqueous Technologies Zero Ion.
Features
- Dimensions 28″ x 53 1/4″ x 53″
- Weight 288 lbs
- Electrical Requirements (North America): 120VAC, 10 Amps
- Electrical Requirements (Export): 230 VAC, 1 Phase, 5 Amps,
- Test Method: Dynamic
- Control System: All-in-One PC
- Graphic User Interface / LCD Screen
- Counter Top: ESD Safe Stainless Steel Counter Top with ESD Ground Plug
- Test Solution 75% IPA / 25%
- Test Result Display: On Screen, PDF Report Writer, Excel Export
| Zero Ion G3-12 | 12" x 12" Board Capacity |
| 304mm x 304mm | |
| Zero Ion G3-18 | 18" x 18" Board Capacity |
| 457mm x 457mm | |
| Zero Ion G3-24 | 24" x 24" Board Capacity |
| 609mm x 609mm | |
| Zero Ion G3-CUS | Custom sizes available up to 30" (762mm) |
Ensuring precision and cleanliness in every step of your production.
Aqueous Technologies’ products (post-reflow cleaning/defluxing systems, stencil cleaners, ionic contamination testers, and water recyclers) are designed and manufactured in the USA. Their equipment designs are inspired by their state’s 840 miles of coastline which reminds us of the power of water and the importance to protect our environment. Since 1992, Aqueous Technologies has manufactured more than five-thousand machines for military, space, aerospace, medical, transportation, EV’s and many other high-reliability applications for both OEM’s and contract manufacturers.
