ELMOTEC | Soldering Robot

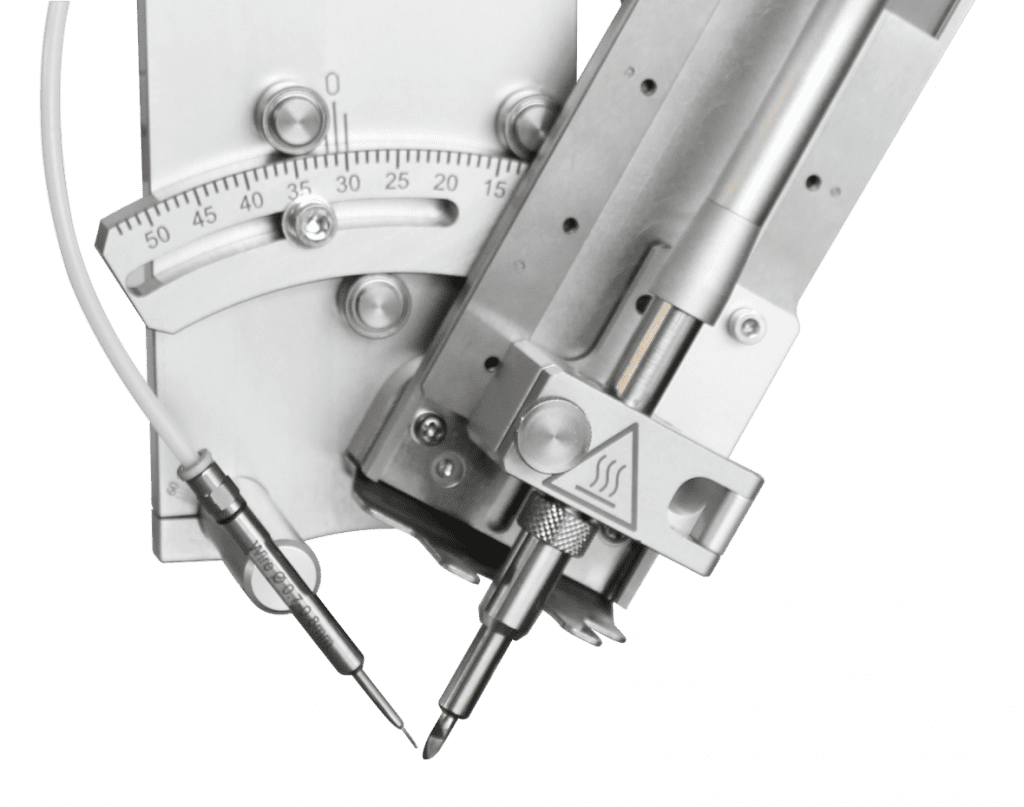

SolderSmart TOP
Automate your iron soldering process and reach a new level of quality
Is this system right for you?
Let our expert team guide you in choosing the perfect system for your needs.
- Replace your hand soldering tasks with the SolderSmart® table top solution
- The SolderSmart will bring your production quality on a new level with repeatability
- Highest precision thanks to electrical linear axis and automated zero point calibration
- Ready for monitoring & traceability tasks
- Easy plug and play solution
- Developed and made in Switzerland
The SolderSmart soldering robot meets the highest technical standards. The soldering process is monitored and documented (traceability). Typical application areas are THT components soldering on assembled boards, soldering stranded wires to boards and soldering of connectors.
Autom. zero point calibration
Ensures that the soldering tip is correctly aligned at all times
- after soldering tip change
- after heating element change
- after program change
- after maintenance
- after solder wire change
Autom. soldering tip measurement
Ensures that the correct size of soldering tip is used
- after soldering tip change
- after program change
- store soldering tip size per program and activate automatic control
- after maintenance
- after solder wire change
Elevate your production with Elmotec soldering technology.
Features
- Automated Tip measurement
- Low energy costs / minimal maintenance & servicing downtime
- Computer-based process control & monitoring of all parameters
- VisionSystem with Traceability, Position correction or Solder joint check functionality available
- Flexible adjustment of solder wire diameter (0.5mm, 0.8mm, 1.0mm)
- Hood for safety and CE compliance
- 2 Drawers for maximum utilisation of your operator and soldering robot
| Working Surface | 480 x 380mm |
| Axis Accuracy | +/- 0.2mm |
| Supply Voltage | 100/230 VAC, 50/60 Hz |
| Dimensions | 880 x 880 x 830mm (including hood) |
| Speed | ~ 400mm/s |
| Weight | ~ 75kg |
| Soldering System | 90W, 150W |
| Power Consumption | <300W |
Soldering automation as easy as never before
ELMOTEC is a family owned Swiss company established in 1989. Development, construction and production of electric drives, controlled soldering equipment and machines is the main focus. ELMOTEC is specializes in solving application problems when using the latest and most advanced technology. In 2001 All products and services have been streamlined under the brand and company name of ELMOTEC. Included is not only robotic soldering technology, but also the production of automatic soldering products for electrical/electronic industries and special components for assembly and handling, such as small conveyors belts and rotary drives as well. Our specialists have more than thirty years of experience in catering to customer needs and their requirements. This also relates to the design and construction of special equipment.
