ELMOTEC SolderSmart MAX is your perfect solution for a fully automated soldering process for high volume production, reaching highest quality standards in the market.
Search Systems

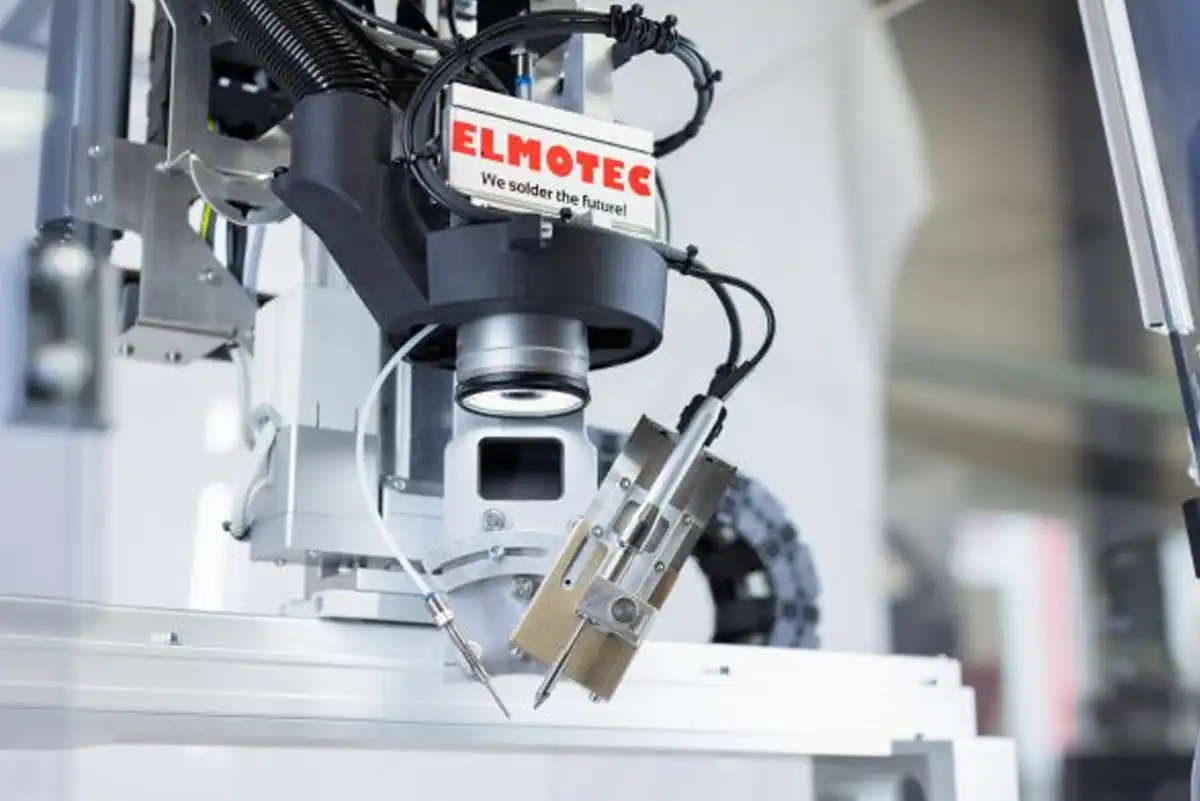

ELMOTEC | Soldering Robot
SolderSmart MAX
High and stable soldering quality without any compromises
Please complete all fields below to download the datasheet.
Is this system right for you?
Let our expert team guide you in choosing the perfect system for your needs.

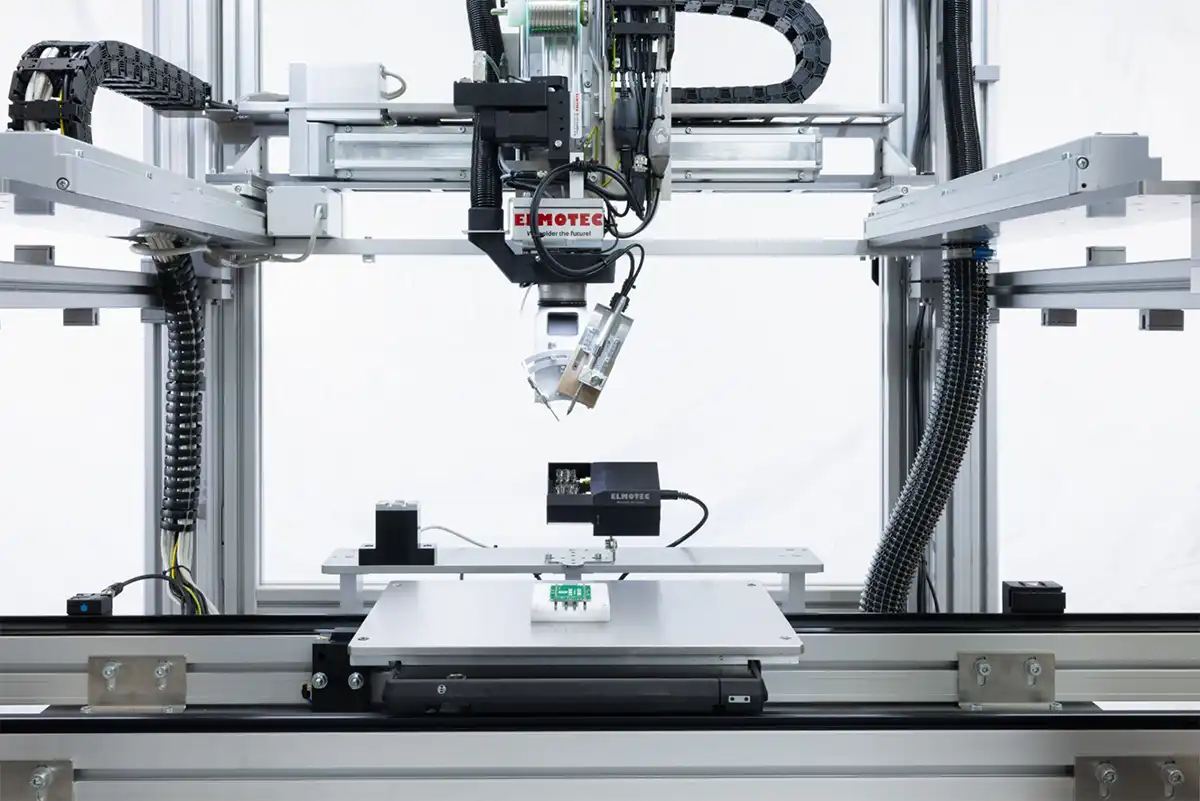

ELMOTEC SolderSmart MAX is your perfect solution for fully automated soldering process for high volume production reaching highest quality standards in the market.
Configurate your own solution, by selecting your heating technology and handling systems. The SolderSmart MAX can be used as inline or offline solution with your transfer system.
Advantages:
- Modularity to configure your perfect automated soldering solution
- Computer based process control and monitoring of all parameters
- Easy to teach software from SolderSmart platform
- VisionSystem with Position correction, Traceability & Solder joint check
- Precise Wire feeder for solder wire diameter (0.5mm, 0.8mm, 1.0mm)
- Efficient heating technologies for low energy costs and maintenance
High and stable soldering quality without any compromises.
Elevate your production with ELMOTEC soldering technology.
| Working Surface | 425 x 500mm |
| Axis Accuracy | +/- 0.2mm |
| Supply Voltage | 100/230 VAC, 50/60 Hz |
| Dimensions | 1150 x 965 x 2000mm |
| Speed | ~ 400mm/s |
| Weight | > 350kg (Basic) |
| Power | < 2kW |
| Component Height | Max. 200mm |
Soldering automation as easy as never before
ELMOTEC is a family owned Swiss company established in 1989. Development, construction and production of electric drives, controlled soldering equipment and machines is the main focus. ELMOTEC is specialises in solving application problems when using the latest and most advanced technology. In 2001 All products and services have been streamlined under the brand and company name of ELMOTEC. Included is not only robotic soldering technology, but also the production of automatic soldering products for electrical/electronic industries and special components for assembly and handling, such as small conveyors belts and rotary drives as well. Our specialists have more than thirty years of experience in catering to customer needs and their requirements. This also relates to the design and construction of special equipment.
